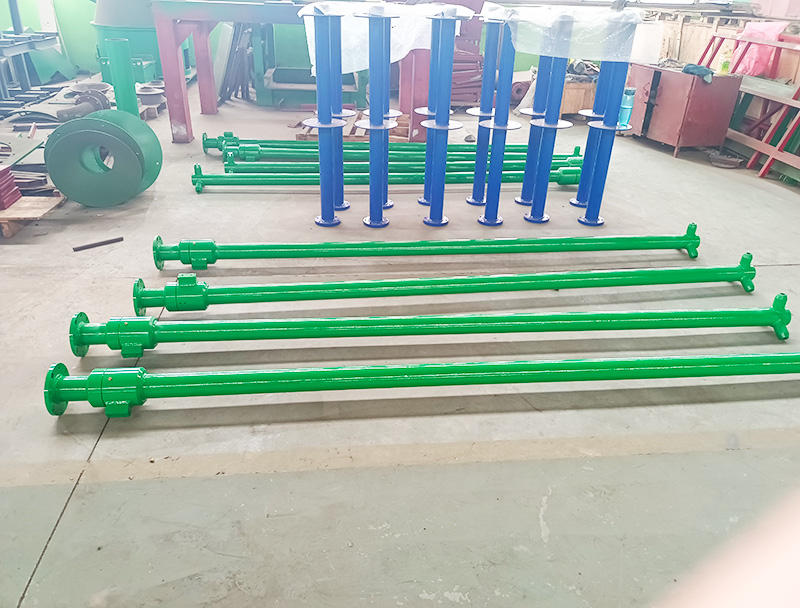

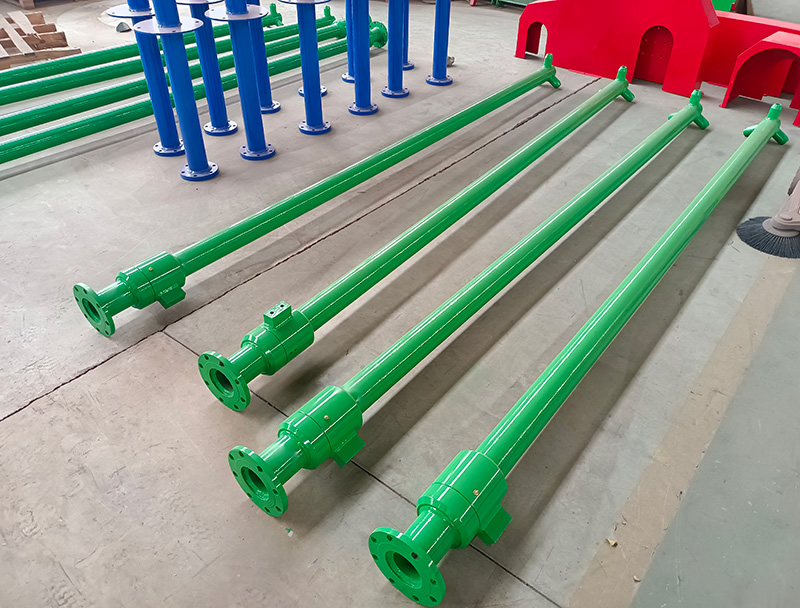

Swivel Type Mud Gun is used in Mud Tank
Basic Information
TR mud gun is used to provide primary mixing inside mud tank. The number of mud gun depends on the size of tank. Usually mud gun installed with mud line of mud tank. The objective of the mud gun is to prevent any kind of solid precipitation and transport the drilling fluid between the tanks. The equipment also is utilized with a centrifugal pump and mud pump for an effective result. The simple design allows anyone to use the mud guns without much training. This mud gun is easy to use.According the inlet pipe size, there are 2" mud gun and 3" mud gun for option. According to different structure feature, there are two types of mud gun: fixed mud gun , and rotary mud gun.
Advantages
- Flexible on configuration of size and pressure rates.
- Jet nozzle is both replaceable and wearable.
- Adopts high-speed jet nozzle, with strong stirring and shearing function.
- Can be 360° all-round rotation, easy to operate.
- Discharge nozzle are made from polyurethane material, with long service life.
Mud Gun Technical Parameters
| Model |
TRNJQ50-3 |
TRNJQ50-3X |
TRNJQ80-3 |
TRNJQ80-3X |
| Diameter |
50mm |
50mm |
80mm |
80mm |
| Working Pressure |
≤6.4MPa |
≤3.2MPa |
≤6.4MPa |
≤3.2MPa |
| Nozzle No. |
1/3e |
|||
| Rotation Angle |
N/A |
360° |
N/A |
360° |
Swivel Type Mud Gun is used in drilling rig solids control system
Mud Gun is designed to clean the mud residue in mud tank bottom or pump suction inlets in solids control system to prevent mud sediment happening and keep tank clean to prolong the equipment service life. TRNJQ series Swivel Type Mud Gun can be easy to vortically work in 360°and can be fixed at the tank bottom with better stability.
We are an exporter of Swivel Type Mud Gun. TR solids control is the designed, selling, production, service and delivery of Chinese mud gun manufacturer. We will provide the high quality drilling mud guns and best service. Your best fluids mud gun start from TR solids control.
