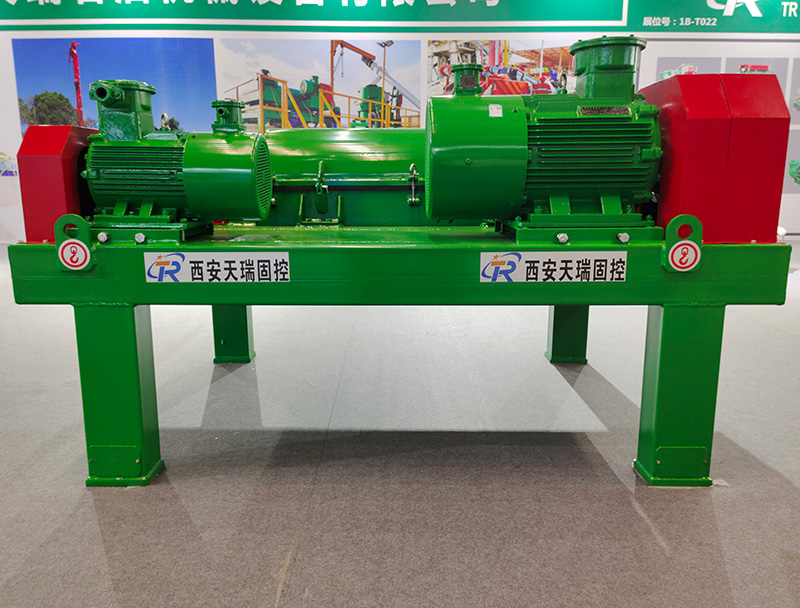

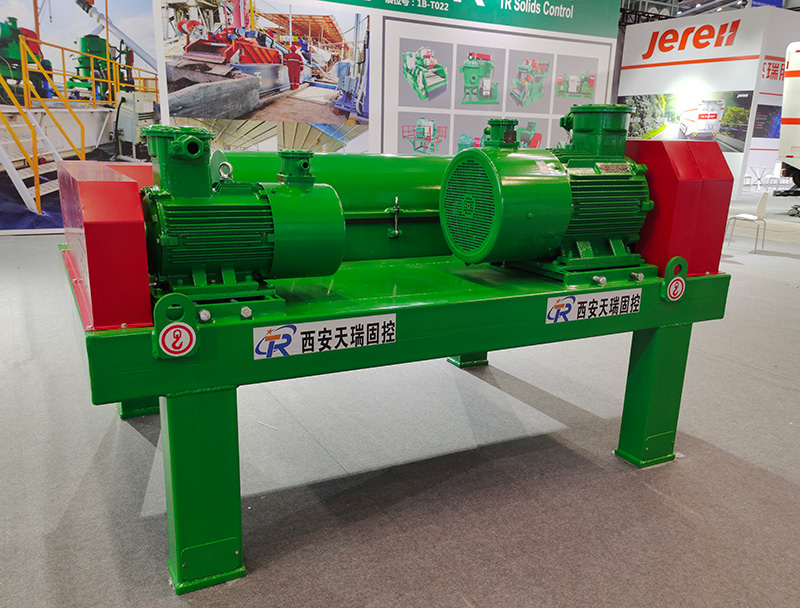

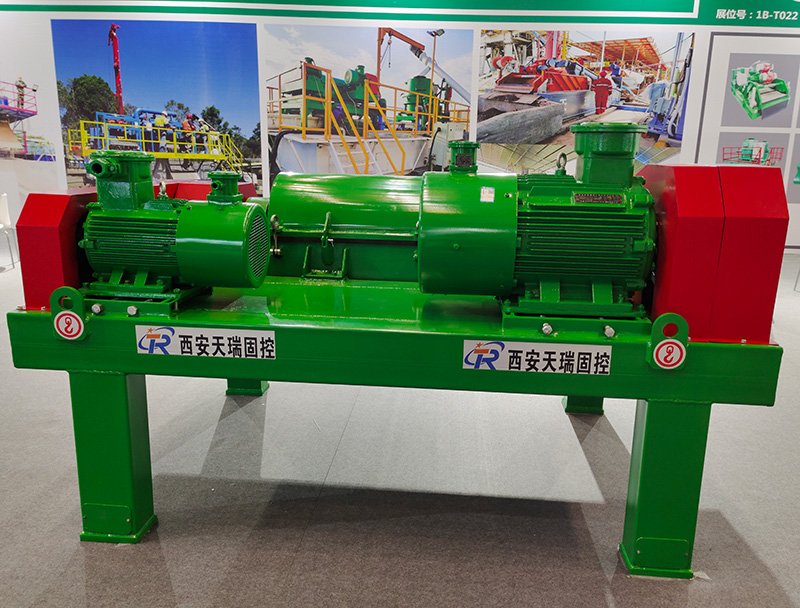

Drilling Mud Decanter Centrifuge for oil drilling
Advantages
- Big bowl, large treatment capacity, high G-force is available.
- Stainless steel（2205） is adopted for main body(collection box included).
- Spiral propeller is stainless steel material, the welding cemented carbide or ceramic empiecement for the protection of propeller.
- Replaced cemented carbide ring or ceramic for protecting solids discharge outlet.
- Bearing: Germany FAG or Sweden SKF.
- Electrical Component: Siemens,Schneider.
- Three types overload protection: 1). Transmission Safety Protection Device. 2). Fluid coupling overload protection 3). Electrical control cabinet current protection.
- Screw pump or centrifugal pump can be the feed pump for centrifuge so as to meet different requirement.
Technical Parameters
| Model | TRGLW355N-1 | TRGLW450N-2 | TRGLW450N-3 | TRGLW550N-1 |
| Bowl Diameter | 355mm (14inch) | 450mm (17.7inch) | 450mm (17.7inch) | 550mm (22inch) |
| Bowl Length | 1250mm(49.2inch) | 1250mm(49.2inch) | 1600(64inch) | 1800mm(49.2inch) |
| Max Capacity | 40m3/h | 60m3/h | 70m3/h | 90m3/h |
| Max Speed | 3800r/min | 3200r/min | 3200r/min | 3000r/min |
| Rotary Speed | 3200r/min | 3000r/min | 2800r/min | 2600r/min |
| G-Force | 3018 | 2578 | 2578 | 2711 |
| Separation | 2~5μm | 2~5μm | 2~5μm | 2~5μm |
| Main Drive | 30kW-4p | 30kW-4p | 45kW-4p | 55kW-4p |
| Back Drive | 7.5kW-4p | 7.5kW-4p | 15kW-4p | 22kW-4p |
| Weight | 2950kg | 3200kg | 4500kg | 5800kg |
| Dimension | 2850X1860X1250 | 2600X1860X1250 | 2950X1860X1250 | 3250X1960X1350 |
(Note: Rotary speed can be adjustable as per user’s requirements)
Variable Speed Decanting Centrifuge Technical Parameters
|
Model |
TRGLW355N-1V |
TRGLW450N-2V |
TRGLW450N-3V |
TRGLW550N-1V |
|
Bowl Diameter |
355mm (14inch) |
450mm (17.7inch) |
450mm (17.7inch) |
550mm (22inch) |
|
Bowl Length |
1250mm(49.2inch) |
1250mm(49.2inch) |
1600(64inch) |
1800mm(49.2inch) |
|
Max Capacity |
40m3/h |
60m3/h |
70m3/h |
90m3/h |
|
Max Speed |
3800r/min |
3200r/min |
3200r/min |
3000r/min |
|
Rotary Speed |
0～3200r/min |
0～3000r/min |
0～2800r/min |
0～2600r/min |
|
G-Force |
3018 |
2578 |
2578 |
2711 |
|
Separation |
2~5μm |
2~5μm |
2~5μm |
2~5μm |
|
Main Drive |
30kW-4p |
30kW-4p |
45kW-4p |
55kW-4p |
|
Back Drive |
7.5kW-4p |
7.5kW-4p |
15kW-4p |
22kW-4p |
|
Weight |
2950kg |
3200kg |
4500kg |
5800kg |
|
Dimension |
2850X1860X1250 |
2600X1860X1250 |
2950X1860X1250 |
3250X1960X1350 |
Waster Decanter Centrifuge for drilling fluids solids control
Waste Decanter Centrifuge used in vertical cuttings dryer, remove all the soids in the drilling fluids.
We are an exporter of Drilling Waste Decanter Centrifuge .Our factory approval the API Q1,Waste Decanter Centrifuge have the API certification.TR solids control is the designed,selling,production,service and delivery of China waster decanter centrifuge manufacturer. We will provide the high quality Mud Dewatering Centrifuge and best service.Your best Drilling Waste Decanter Centrifuge start from TR solids control.
