Full Hydraulic Drive Decanter Centrifuge

Short Description:

TR Solids Control is a leading decanter centrifuge manufacturer. And our supplier from Switzerland are leading brand for centrifuge hydraulic driving system. GN and our Switzerland supplier has been jointly working together to develop the full hydraulic drive centrifuge for international clients to meet the highest standard.

The hydraulic bowl and scroll drive system drives both the conveyor and bowl of a decanter centrifuge from hydraulic pump unit by two hydraulic oil circuits.

The advantage of the full hydraulic drive centrifuge is for use in high temperature ambient for heavy mud with flexible bowl and differential speed. The compact one skid design makes it easier for rig up.


Product Detail

Product Tags

Technical Parameters

Model

TRLW363D-FHD

Bowl Size

355x1250mm

Bowl Speed

0-3400RPM (2328G)

Differential Speed

0-70RPM

Motor Power

45 KW

Driving System

Switzerland Hydraulic Drive

Max Capacity

200GPM(45m3/h)

Max Torque

4163 N.M

Dimension(mm)

3000x2400x1860mm

Weight (KG)

3400KG

The above specification and parameters for reference only.

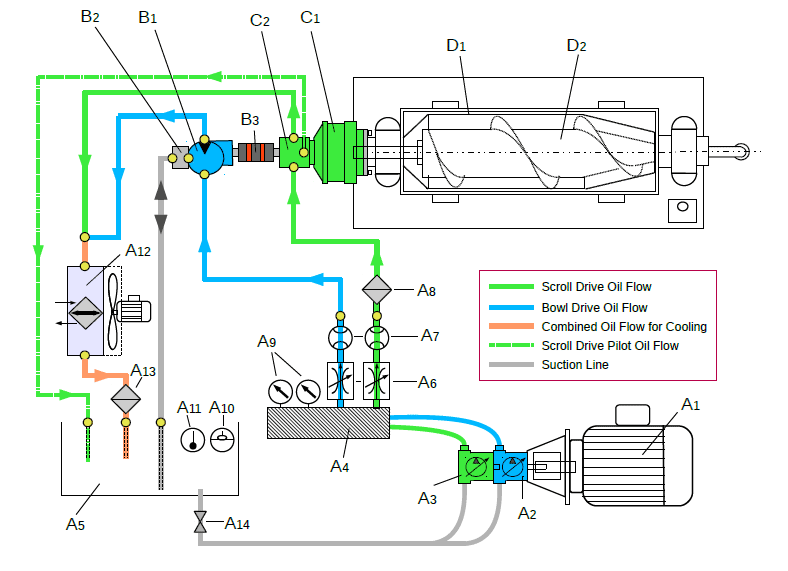

Principle of the Hydraulic Drive System

Full Hydraulic Drive Decanter Centrifuge

The full hydraulic system consists of A the Hydraulic Pump Unit, B the Bowl drive hydraulic motor, and C the Scroll drive.

The hydraulic pump unit A feeds hydraulic oil to the scroll drive C and the bowl drive B by means of two separate and individually independent operating circuits.

An electric motor A1 drives the combined pumps A2 and A3. Each operating circuit is equipped with its own hydraulic pump and its own controls. The pump unit contains all setting devices and safety valves, as well as pressure gauges.

With this system, the bowl's rotational speed as well as the scroll's differential speed may be manually adjusted independently from one another, continuously and infinitely variable during the centrifuge’s operation.
