Mud Vacuum Degasser for Drilling Fluids System

Short Description:

Mud Vacuum Degasser and Drilling Vacuum Degasser are special purpose product for gas treatment in drilling fluids.

Mud Vacuum Degasser is the most common form of degassing systems used in the oil & gas industry. Drillng fluid is pulled into the tank by vacuum action. The fluid rises inside the tank and is distributed over a series of plates which releases the gas bubbles from the drilling fluid.

Mud Vacuum Degasser is a special purpose product for gas treatment in drilling fluids. This unit is positioned downstream from shale shaker, mud cleaner and mud gas separator, while hydrocyclones and centrifuges follow in the arrangement. It is used to remove small entrained gas bubbles left in the mud by mud gas separator.

Mud Vacuum Degasser is also called mud/Gas separator. Mud/gas separators (Degasser) is the first units of solids control equipment arranged to treat drilling mud. As such, they process all of the drilling mud from the flow line before the mud reaches the primary shale shakers.


Product Detail

Product Tags

Basic Information

Drilling vacuum degasser plays an important role in removing dissolved gases and gas bubbles. The gas like methane, CO2 and H2S need to be released and broken from the mud to the surface in drilling fluids. TRZCQ vacuum degasser is simple in design and operation. It is one of solids control and waste management equipment used in oil and gas drilling industry.

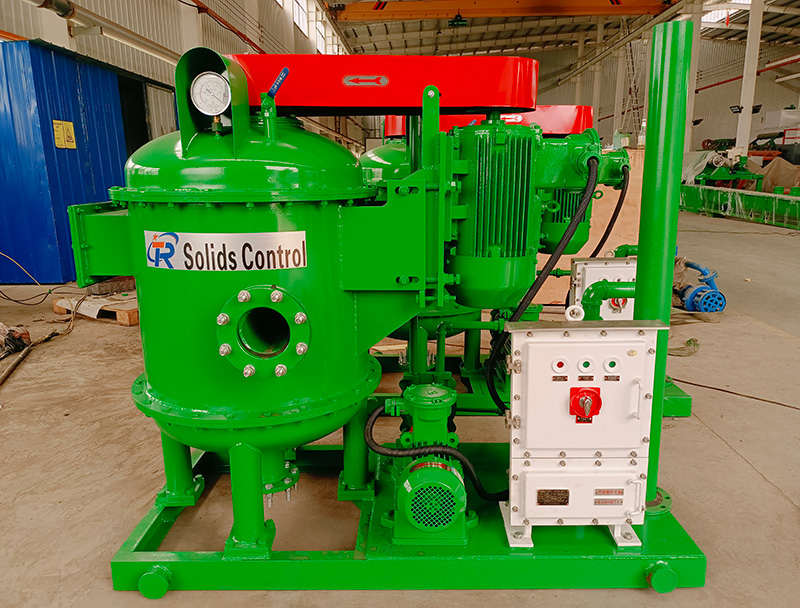

Vacuum-Degasser-6

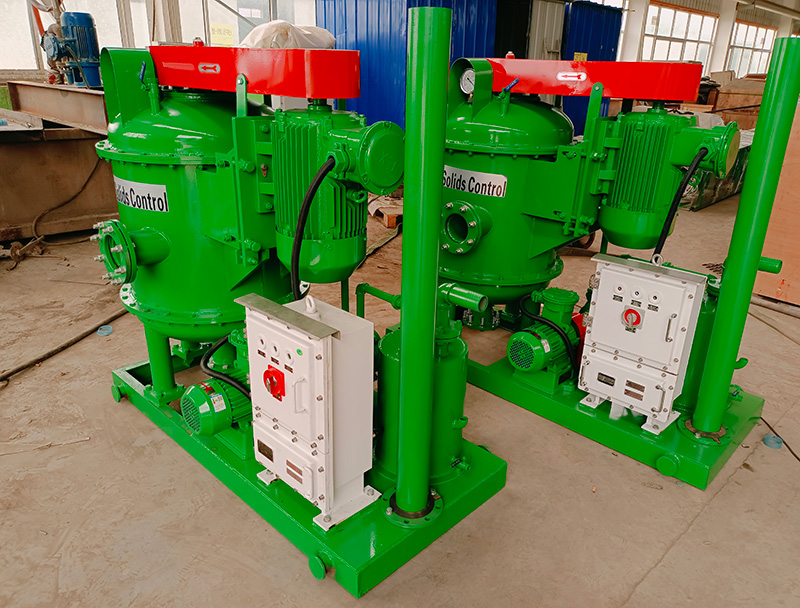

Vacuum-Degasser-5

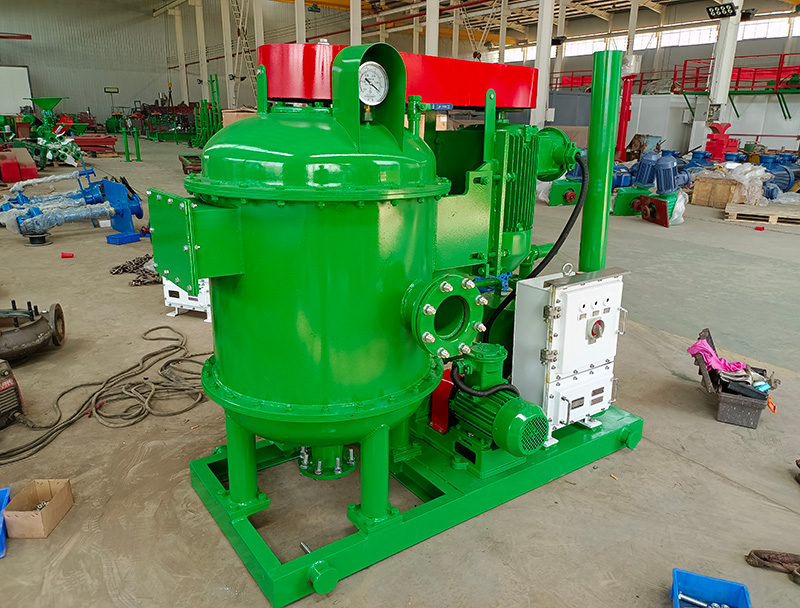

Vacuum-Degasser-7

Features of Mud Vacuum Degasser

  • Water ring type of mud vacuum pump work is suitable for flammable and explosive gas suction.
  • Gas-water separator in drilling vacuum degasser saves water and environment-friendly.
  • Scientific and reasonable design for structure achieves effective separation of gas and liquid.
  • Mud vacuum degasser has high degassing efficiency up to 95%.
  • Self-priming device enables it to pump drilling fluids without centrifugal pump.
  • Belt drive guarantees the long time working time without trouble.

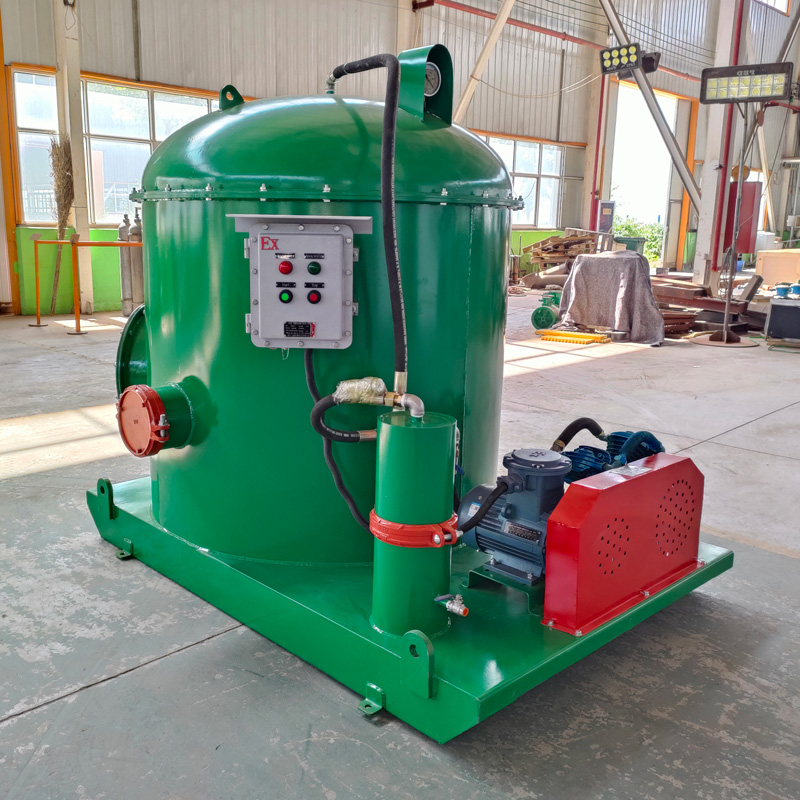

Vacuum-Degasser-detail_1

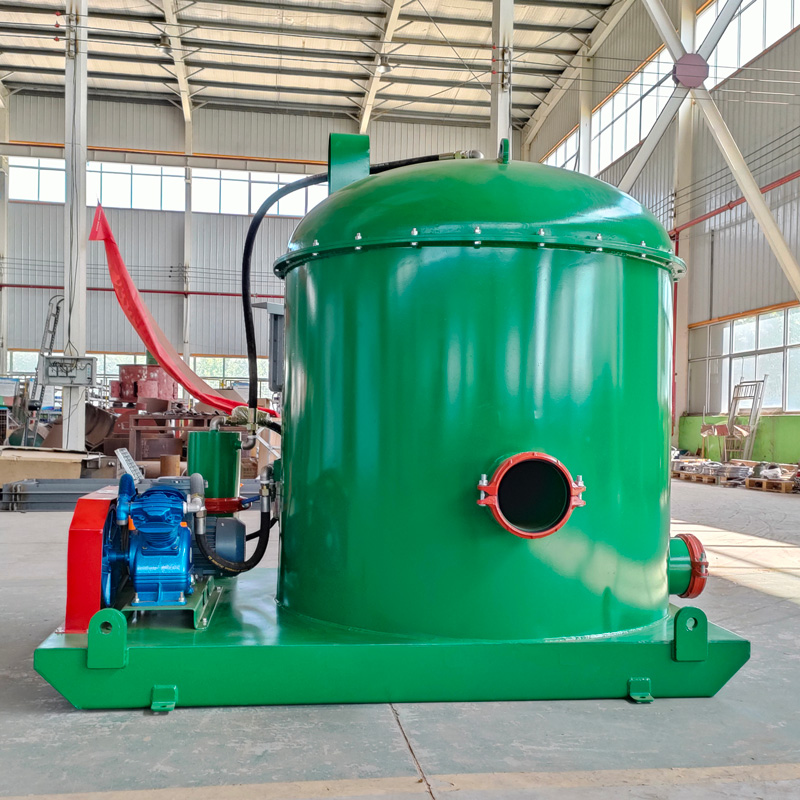

Vacuum-Degasser-detail_3

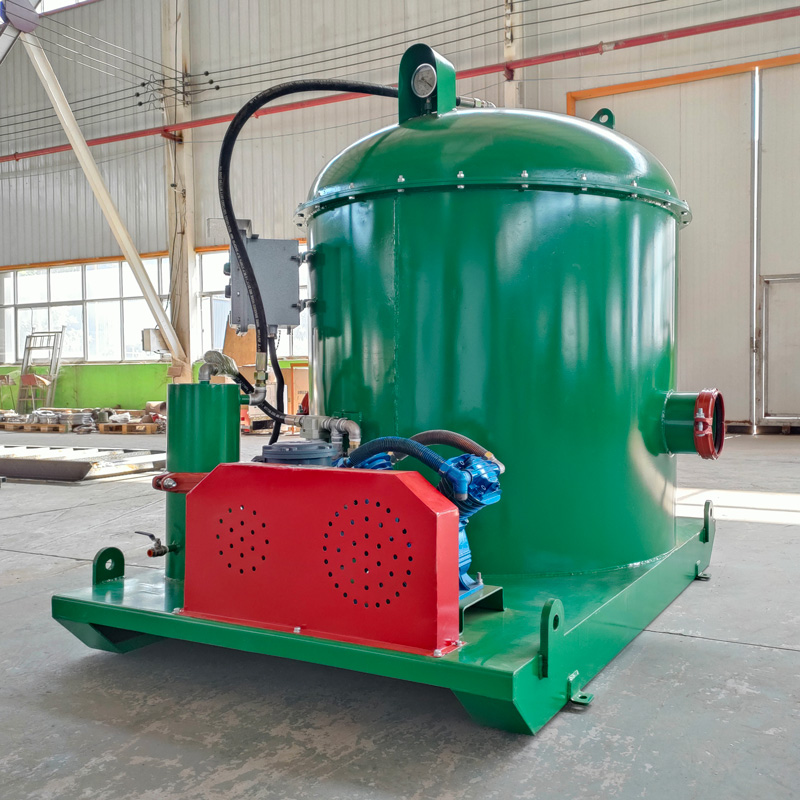

Vacuum-Degasser-detail_2

Drilling Vacuum Degasser Technical Parameters

Model

TRZCQ240

TRZCQ270

TRZCQ300

TRZCQ360

Body Diameter

700mm

800mm

900mm

1000mm

Handling Capacity

240 m³/h

270 m³/h

300 m³/h

360 m³/h

Vacuum Degree

-0.030-0.045Mpa

-0.030-0.050Mpa

-0.030-0.045Mpa

-0.030-0.045Mpa

Transmission Ratio

1.68

1.68

1.68

1.72

Degassing Efficiency

≥95%

≥95%

≥95%

≥95%

Motor Power

15kW

22kW

30kW

37Kw

Vacuum Pump Power

2.2kW

3kW

4kW

7.5kW

Impeller Speed

860r/min

870r/min

876r/min

880r/min

Dimension

1750×860×1500mm

2000×1000×1670mm

2250×1330×1650mm

2400×1500×1850mm

Weight

1100kg

1350kg

1650kg

1800kg

We are an exporter of Mud Vacuum Degasser. TR solids control is the designed, selling, production, service and delivery of Chinese Mud Vacuum Degasser manufacturer. We will provide the high quality Drilling Vacuum Degasser and best service. Your best fluids Drilling Vacuum Degasser start from TR solids control.
