Flare Ignition Device

Short Description:

The Flare Ignition Device is used in conjunction with the Mud Gas Separator. flare ignition device is a handy tool to light the wasted gas in the industry of oil and gas. This tool is being used to burn poisonous or harmful gas by igniter which will ensure the safety of the environment and eliminate the threat.

The Flare Ignition Device is used in conjunction with the Mud Gas Separator. flare ignition device is a handy tool to light the wasted gas in the industry of oil and gas. This tool is being used to burn poisonous or harmful gas by igniter which will ensure the safety of the environment and eliminate the threat.

Flare ignition device is a special oil drilling equipment to handle the invaded gas, it is also an effective equipment to handle the tail gas and invaded natural gas in oil field, refinery and natural gas collecting and distributing station. It can ignite the harmful invaded gas to eliminate the hazards to the environment, also it is a security environmental protection equipment. This equipment can match with mud gas separator, and is usually used in oil & gas drillingand CBM drilling project. Flare ignition device for gas ignition control in oilfield is equipped to burn on the oil and natural gas drilling field in case of flammable and poisonous gas overflow while drilling and eliminate the harm to the environment and ensure safety. It consists of a gas guiding pipe, an ignition device, a torch and an explosion-proof hose, integrating high pressure electronic ignition and gas combustion.






Product Detail

Product Tags

Advatages of Flare Ignition Device

  • High ignition frequency and speed.
  • Electrical components are imported components.
  • AC and DC ignition are switchable, in case low battery to unable ignition.
  • Matching with solar panel to achieve the purpose of energy saving.
  • Top part design is rain-proof with material stainless steel 304.
  • Manual ignition can be used with remote electronic ignition. Effective distance is100m to 150m.
Flare-Ignition-Device5

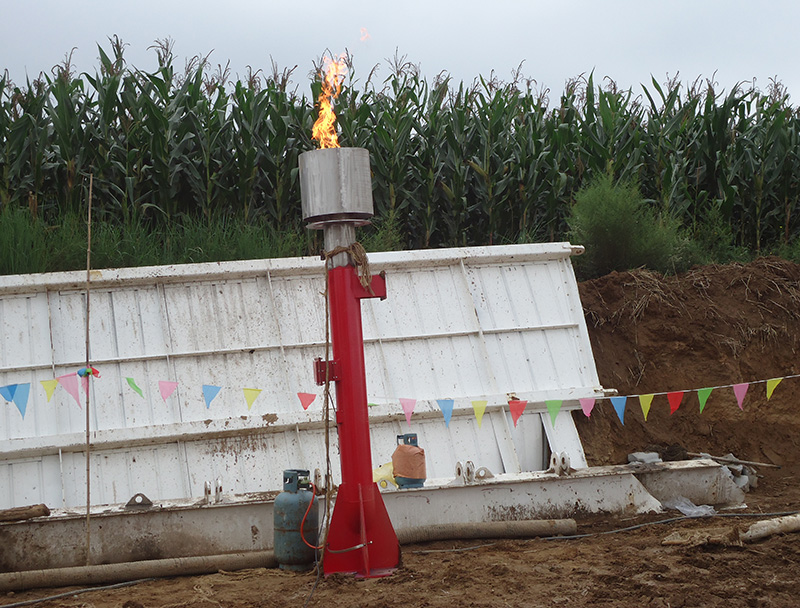

Flare-Ignition-Device7

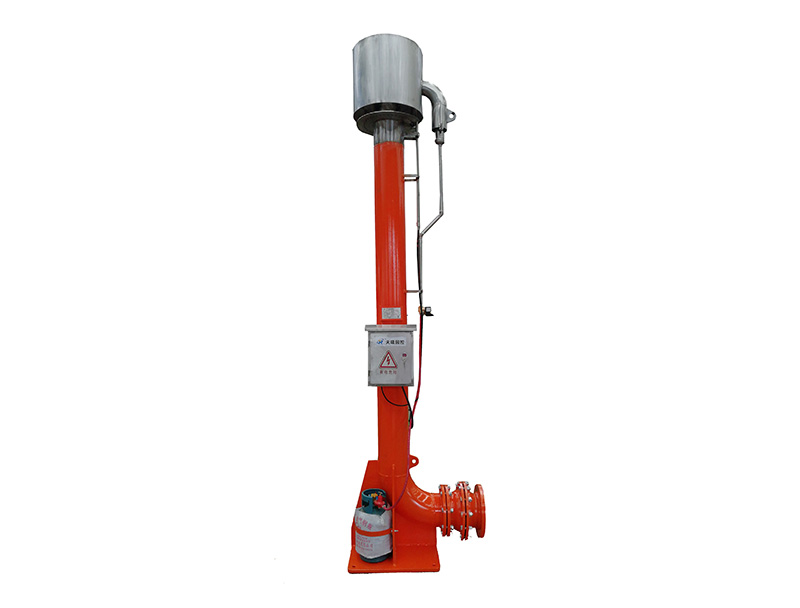

Flare-Ignition-Device

 Flare Ignition Device Technical parameters

Model TRYPD-20/3 TRYPD-20/3T
Diameter of Main Body DN200
Charging Voltage 12V/220V
Ignition Media Natural gas/LPG
Ignition Voltage 16kv 16kv
Charge Mode AC Solar and AC
Weight 520kg 590kg
Dimension 1610×650×3000mm 1610×650×3000mm

The Flare Ignition Device is used in conjunction with the Mud Gas Separator. Together they process the combustible gas that is present on the drilling site. The gas which the Mud Gas Separator separates is guided out by the Gas outlet present in that device and then treated with the Flare Ignition Device. For safety reasons, a hose is utilized to ensure that the distance between the Flare Ignition Device and the drilling site is at least 50 meters.
